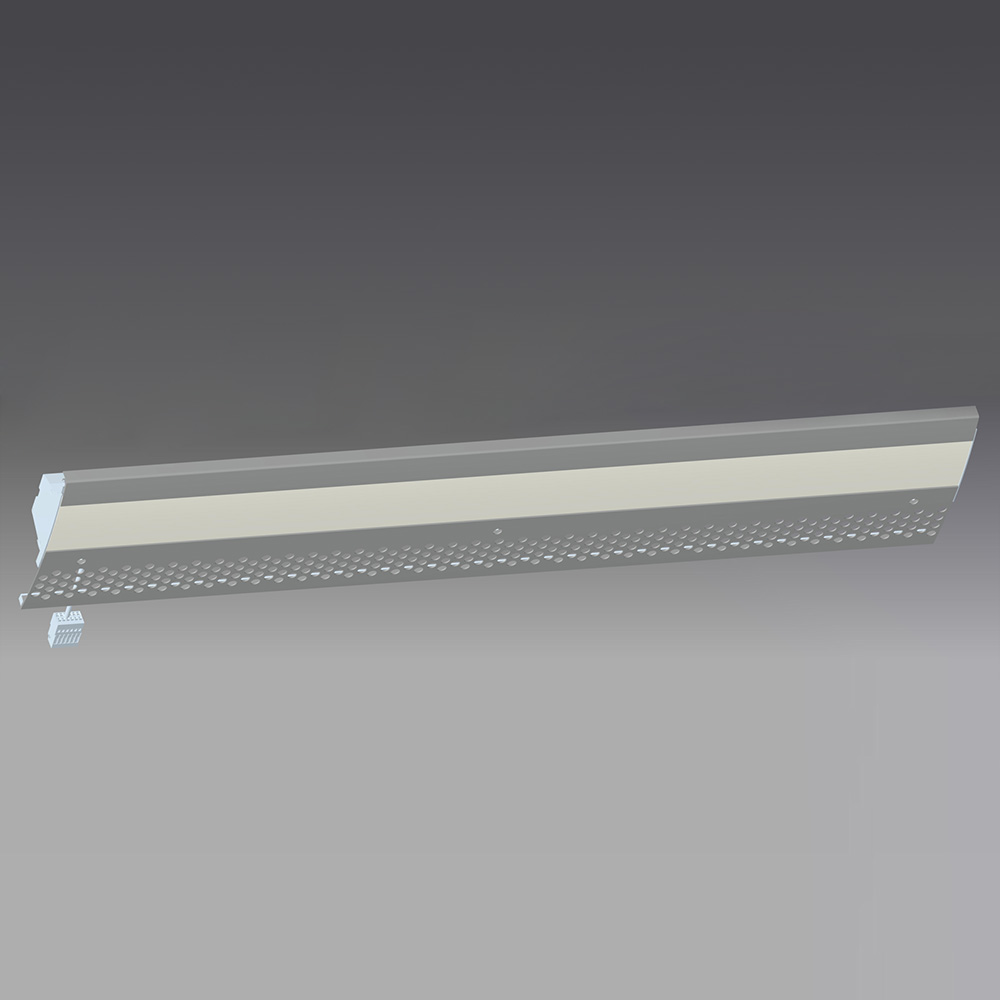

Ceiling strip LRV/TRAM LD236

STANDARD ACCESSORIES

The lamp body is sheet metal parts with AL profile, and the surface is anodized, with good corrosion resistance
Luminaires are integrated with ventilation vents
WAGO connector
Dimming
Rated power:13W/m
LED chipset:2835

OPTIONS

Alternative LED light source
Alternative colour surface treatment
Alternative customized dimensions

(86)755-29503812

info@longyun.com

Length	Power supply	Light source	Dimming	color temperature	dimming range
1100mm	DC24V	2835	Yes	3000K/4000K	35%/30%, 50%,70%, 100%
3534mm	DC24V	2835	Yes	3000K/4000K	35%/30%, 50%,70%, 100%
3686.5mm	DC24V	2835	Yes	3000K/4000K	35%/30%, 50%,70%, 100%
3788mm	DC24V	2835	Yes	3000K/4000K	35%/30%, 50%,70%, 100%
4734mm	DC24V	2835	Yes	3000K/4000K	35%/30%, 50%,70%, 100%
5236.5mm	DC24V	2835	Yes	3000K/4000K	35%/30%, 50%,70%, 100%
5675mm	DC24V	2835	Yes	3000K/4000K	35%/30%, 50%,70%, 100%
5932.5mm	DC24V	2835	Yes	3000K/4000K	35%/30%, 50%,70%, 100%
6033mm	DC24V	2835	Yes	3000K/4000K	35%/30%, 50%,70%, 100%
